Products and Technology:

Flow measurement based on thermal dispersion and Coriolis sensing technology delivers proven performance and reliability in the harshest environments. When rugged conditions combine with strict process control requirements, FCI’s thermal dispersion and Coriolis designed sensing elements have established an unmatched record of superior product performance and reliability

Thermal Dispersion Technology:

The typical thermal mass sensing element contains two thermo well-protected Resistance Temperature Detectors (platinum RTDs). When placed in the process stream, one RTD is heated and the other RTD senses the process temperature. The temperature difference between the two RTDs is related to the process flow rate as well as the properties of the process medium. Higher flow rates or denser media cause increased cooling of the heated RTD and a reduction in the RTD temperature difference.



Advantages of Thermal Dispersion:

No moving parts, orifices, bearings or seals to foul or fail

Accuracy for precision flow measurement, especially in low flow applications

Repeatability for consistent measurement in complex process environments

Wide flow range and wide turndowns for a broad range of applications



Highly reliable and dependable in rugged process environments

Easy installation with reduced maintenance requirements

FCI offers the widest selection of thermal dispersion technology instrumentation products. When rugged conditions combine with strict process control requirements, FCI’s thermal dispersion RTD sensing elements establish an unmatched record of superior product performance and reliability for the harshest environments.

ST Series Flow Meters

THERMAL AIR/GAS MASS FLOW METERS

ST50 Air And Compressed Air Flow Meter

Insertion

Air, Compressed Air, Nitrogen

ST51/ST51A Gas Flow Meters

Insertion

Biogas, Digester Gas, Methane, Natural Gas

ST75 Series Mass Flow Meters

Inline

1/4″ to 2″ [6 mm to 51 mm] line, all gases

STP100A Thermal Mass Flow Meter With Pressure

Insertion, single-point with pressure measurement

Any gases, line sizes ≥2.5″ [63 mm], with pressure measurement

ST110A Mass Flow Meter

Insertion, single-point with VeriCal™ capability

Any gases, line sizes ≥2.5″ [63 mm], with VeriCal

ST100A Mass Gas Flow Meters

Insertion

Any gases, line sizes ≥2.5″ [63 mm]

ST100AL Mass Flow Meter

Inline

Any gases, line sizes 1-2″ [25 – 51 mm]

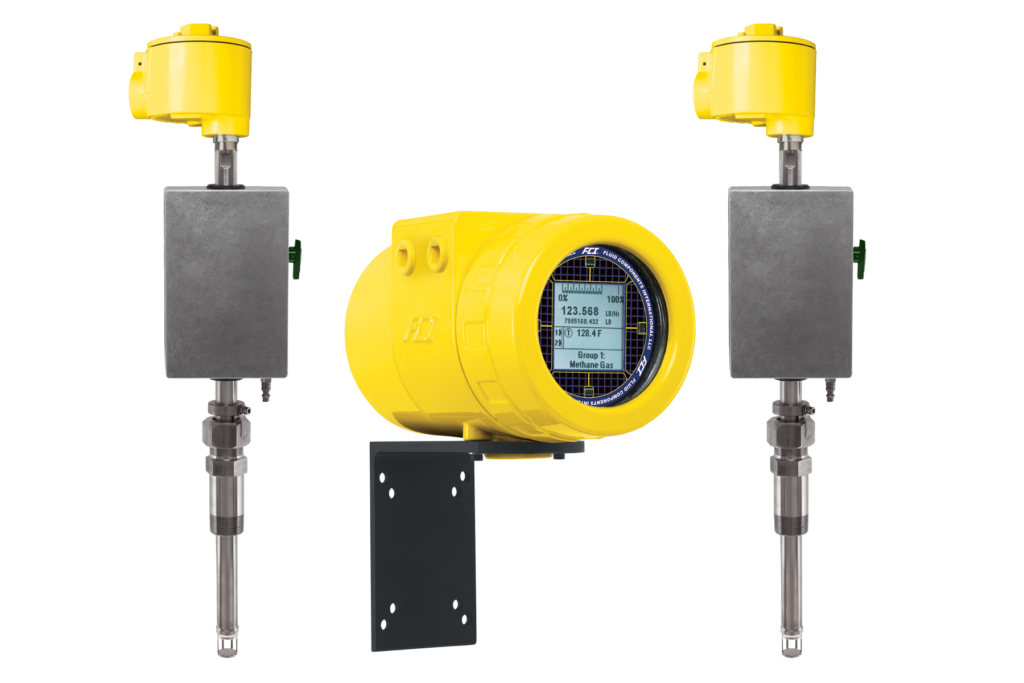

STP112A Mass Flow Meter

Insertion, dual-element averaging system with pressure measurement and VeriCal™ capability

Any gases, line sizes ≥12″ [305 mm], with dual elements, with VeriCal, with pressure measurement

ST102AA Mass Flow Meter

Insertion, dual-element averaging system

Any gases, line sizes ≥12″ [305 mm], with dual elements

STP112A Mass Flow Meter

Insertion, dual-element averaging system with pressure measurement and VeriCal™ capability

Any gases, line sizes ≥12″ [305 mm], with dual elements, with VeriCal, with pressure measurement

STP102A Mass Flow Meter

Insertion, dual-element averaging system with pressure measurement

Any gases, line sizes ≥12″ [305 mm], with dual elements, with pressure measurement

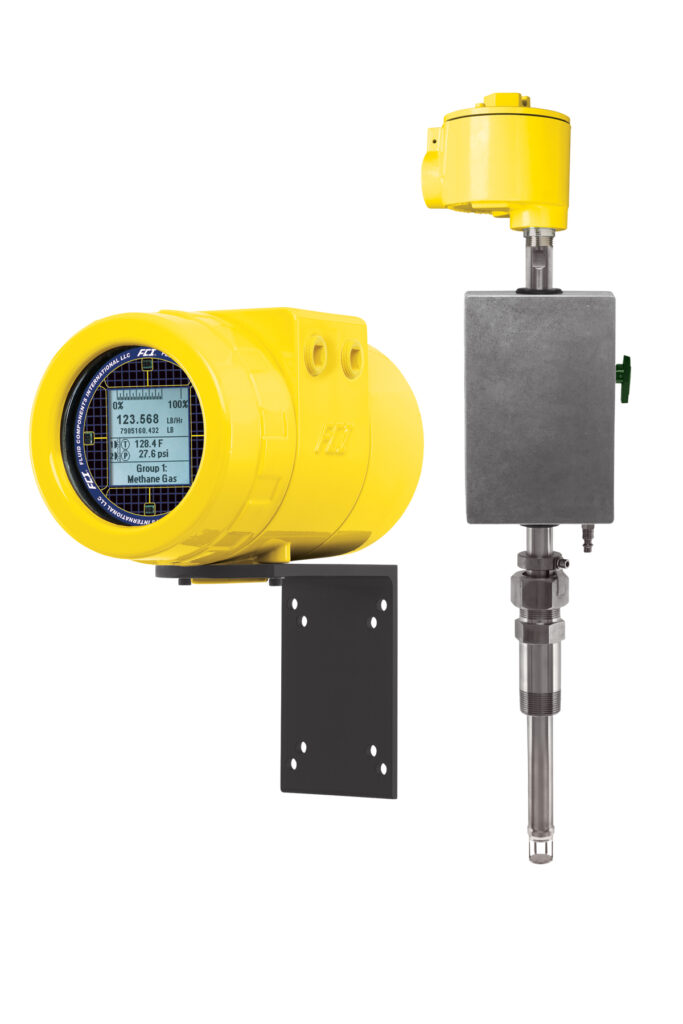

STP110A Thermal Mass Flow Meter With Pressure And VeriCal

Insertion, single-point with pressure measurement and VeriCal™ capability

Any gases, line sizes ≥2.5″ [63 mm], with pressure measurement, with VeriCal

ST80/ST80L Mass Flow Meters

Insertion and Inline

Any gases, line sizes ≥1″ [25 mm]

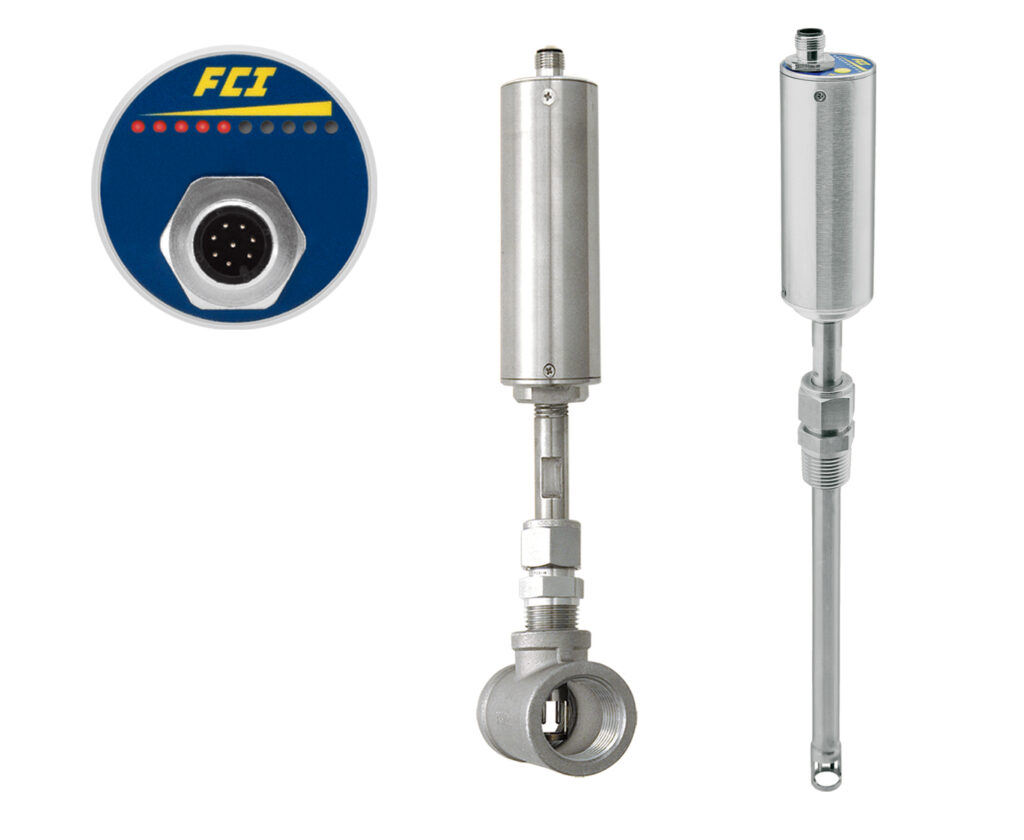

FS10i Thermal Mass Flow Meters

THERMAL FLOW METERS FOR AIR, COMPRESSED AIR, OR NATURAL GAS

FS10i Natural Gas Flow Meter

Inline and Insertion Thermal Flow Meter

Natural Gas Flow Meter

FS10i Air/Compressed Air Flow Meter

Inline and Insertion Thermal Flow Meter

Air, Compressed Air Flow Meter

MT Series Multipoint Thermal Mass Flow Meters

LARGE LINE SIZE, AND DUCTS MULTIPOINT AIR/GAS MASS FLOW METERS

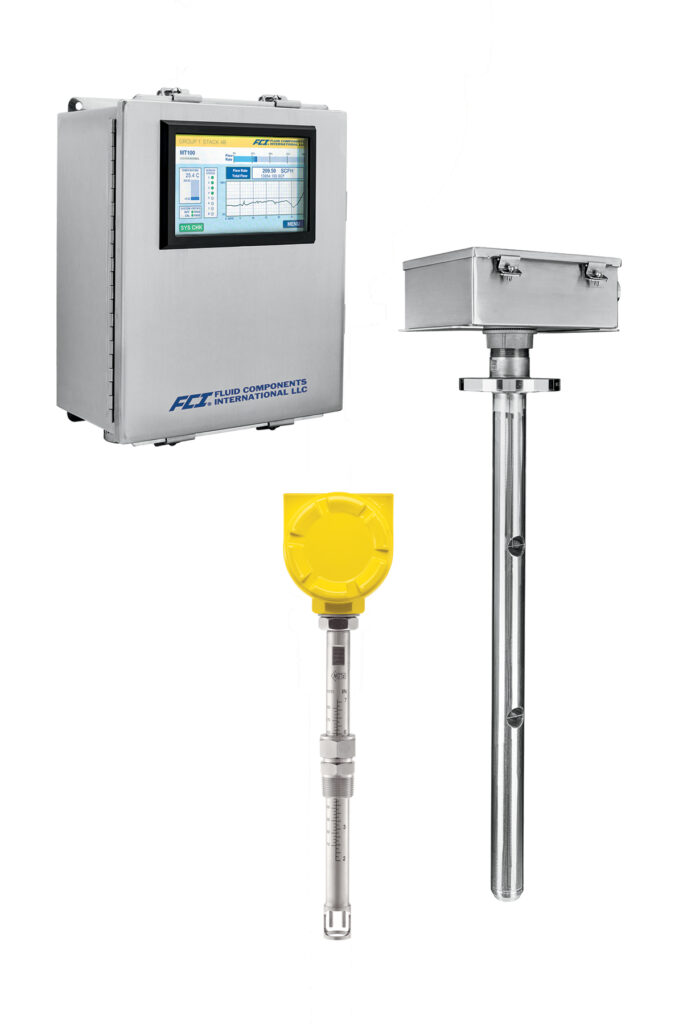

MT100 Series Multipoint Thermal Mass Flow Meters

Insertion

Up to 8 points, high accuracy, best-in-class transmitter/electronics

FLT93 Series Flow Switches

ULTRA RUGGED, HIGH PERFORMANCE FLOW SWITCH FOR LIQUIDS AND GASES

FLT93B Flow Switch

Insertion

Fixed Configuration of FLT93S for Quick Delivery

FLT93S Flow Switch

Insertion

All Liquids and Gases

FLT93F Flow Switch

Insertion

Fast Response, Air and Gas

FLT93L Flow Switch

Inline

Low Flow, Small Lines, All Liquids and Gases

FLT93C Hygienic, Sanitary Flow Switch

Inline

Sanitary Food, Bev, Pharm; All Liquids and Gases

FS10 Series Flow Switch+Monitor

FS10 SERIES: FLOW SWITCH+MONITOR FOR ANALYZERS AND GENERAL PURPOSE PIPE INSERTION

FS10i Flow Switch + Monitor

Insertion

Compact, General Purpose for Air, Gas, Liquids

FS10A Analyzer Flow Switch/Monitor

Tube Tee/SP76

Analyzers and Sampling Systems, Gases and Liquids

FLT93 Series Level Switches

FCI’S BROAD LINE OF FLT93 SERIES LEVEL SWITCHES AND INTERFACE SWITCHES DETECT, MONITOR AND ALARM ON POINT LEVELS OF ALL LIQUIDS. FCI’S LEVEL SWITCHES ARE DESIGNED FOR ACCURATE, HIGHLY REPEATABLE TRIP-POINT SENSITIVITY IN WATER, OILS, CHEMICALS IN INDUSTRIAL PLANTS AND PROCESSES.

FLT93B Level Switch

Insertion

Premium Level and Temperature Monitoring

FLT93S Level Switch

Insertion

Fast Response Liquid Level and Temperature Monitoring

FLT93F Level Switch

Insertion

Ultra Fast Response Liquid Level and Temperature Monitoring

FLT93C Level Switch

Insertion or Inline

Sanitary Liquid Level and Temperature Monitoring

FLT93M Level Switch

Insertion

Multipoint Level Monitoring
